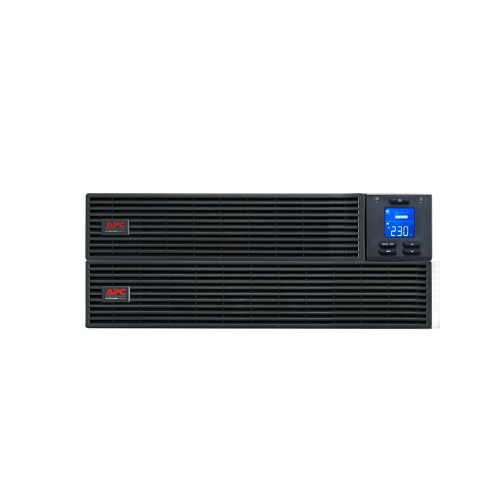

SRV6KRIRK Features Run time for load 4m 1s Max. Capacity Used 100% Output power capacity 6.0kWatts / 6.0kVA Rack Height 4U Output Connections (1) Hard wire 3-wire (H N E) (Battery Backup) Nominal Output Voltage 230V Nominal Input Voltage 230V Input Connections Hard wire 3-wire (1P N E) APC Easy UPS On-Line SRV 6000VA RM 230V with Rail Kit High quality, Double-conversion On-line UPS designed for essential power protection needs even in the most unstable power conditions. Includes: Basic UPS signalling RS-232 cable, CD with software, Rack mounting brackets, Rack mounting support rails, USB cable, User manual Automatic internal bypass Supplies utility power to the connected loads in the event of a UPS power overload or fault. Automatic restart of loads after UPS shutdown Automatically starts up the connected equipment upon the return of utility power. ECO Mode Operating mode that by-passes unused electrical components in good power conditions to achieve high operating efficiency without sacrificing protection EPO Attach the device to an Emergency Power Off (EPO) system so that power can be turned off in an emergency situation. Input power factor correction Minimizes installation costs by enabling the use of smaller generators and cabling. Intelligent battery management Maximizes battery performance, life, and reliability through intelligent, precision charging. Intelligent Card Slot Customize UPS capabilities with management cards. LCD graphics display Text and mimic diagrams that display modes of operation, system parameters and alarms. Serial connection Use your PC to access additional power protection and management features for your UPS via a serial port. USB connection Use your PC to access additional power protection and management features for your UPS via a USB Port. Easy UPS On-Line Features & Benefits Serviceability Automatic self-test Periodic battery self-test ensures early detection of a battery that needs to be replaced. Disconnected battery notification Warns when a battery is not available to provide backup power. Predictive failure notification. Provides early-warning fault analysis ensuring proactive component replacement. Audible alarms Provides notification of changing utility power and UPS power conditions Availability Intelligent battery management Maximizes battery performance, life, and reliability through intelligent, precision charging. Manageability Intelligent Card Slot Customize UPS capabilities with management cards. LCD graphics display Text and mimic diagrams that display modes of operation, system parameters and alarms. LED Indicators Provide easy-to-read status of the unit and utility power conditions. Network manageable Most models provide remote power management options of the UPS over the network. Many do not have NMC embedded. Serial connectivity Provides management of the UPS via a serial port. Features Allows the user to manage the UPS functions, schedule automatic shutdown and monitor the power grid occurrences through an interactive interface that ensures an easy and intuitive monitoring. Management Software Safety-agency approved Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment. Input power factor correction Minimizes installation costs by enabling the use of smaller generators and cabling. Intuitive LCD interface Provides clear and accurate information in multiple languages with the ability to configure the UPS locally with easy to use navigation keys. Management Software Allows you to easily monitor your utility power and manage your UPS. Pure sine wave output on battery Simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics. Double conversion on-line topology Guarantees a consistently high level of power quality. Any disturbances on the distribution waveform are regenerated via the zero transfer time AC to DC then DC to AC conversion process. The battery is only used as a back-up source. ECO Mode Operating mode that by-passes unused electrical components in good power conditions to achieve high operating efficiency without sacrificing protection Generator compatible Ensures clean, uninterrupted power to protected equipment when generator power is used. High efficiency High efficiency rates that remain stable even at lower operating power levels Detailed Tech Specification Output Max Configurable Power (Watts) 6.0kWatts / 6.0kVA Output Voltage Note Configurable for 220 : 230 or 240 nominal output voltage Efficiency at Full Load 94.0 % Output Voltage Distortion 1 % Output Frequency (sync to mains) 50/60 Hz /- 3 Hz Sync to mains Other Output Voltages 220 V, 240 V Load Crest Factor 3 : 1 Topology Double conversion online Waveform type Sine wave Bypass Internal bypass (automatic and manual) Input Input frequency 40 – 70 Hz Auto sensing Input voltage range for main operations 110 – 300 Half load, 176 – 300 Full loadV Efficiency at Full Load 94.0 % Other Input Voltages 220 V, 240 V Batteries & Runtime Battery type Lead-acid battery Typical recharge time 7hour(s) Nominal Battery Voltage 192 V Expected Battery Life (years) 3 – 5 Battery Charge Power (Watts) 235 Watts Runtime View Runtime Graph Communications & Management Interface Port(s) DB-9 RS-232, USB Control panel Multifunction LCD status and control console Audible Alarm Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm Emergency Power Off (EPO) Yes Available SmartSlot™ Interface Quantity 1 Surge Protection and Filtering Surge energy rating 600Joules Physical Maximum Height 173MM, 17.3CM Maximum Width 438MM, 43.8CM Maximum Depth 710MM, 71.0CM Net Weight 61.0KG Shipping weight 71.0KG Shipping Height 1232MM, 123.19CM Shipping Width 600MM, 60.0CM Shipping Depth 836MM, 83.6CM Color Black Environmental Operating Temperature 0 – 40 °C Operating Relative Humidity 0 – 95 % Operating Elevation 0 – 3000meters Storage Temperature -15 – 60 °C Storage Relative Humidity 0 – 95 (Non-condensing) % Storage Elevation 0 – 15000meters Audible noise at 1 meter from surface of unit 55.0dBA Online thermal dissipation 1172.0BTU/hr Protection Class IP20 Conformance Approvals CE, EAC, EN/IEC 62040-1, EN/IEC 62040-2, TISI Standard warranty 2 years repair or replace Sustainable Offer Status RoHS Compliant
