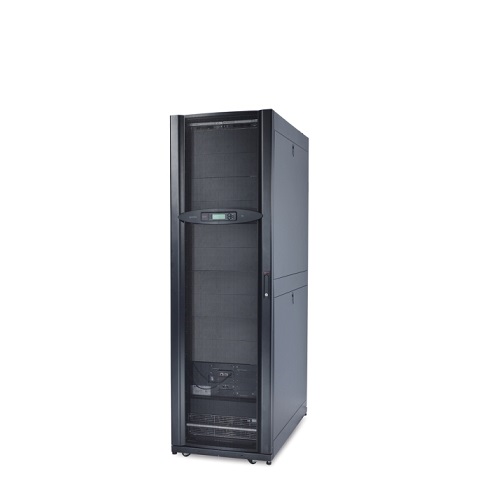

SYCF160KH Features Run time for load — Max. Capacity Used 100% Output power capacity 160.0kWatts / 160.0kVA Rack Height 42U Output Connections (1) Hard wire 5-wire (3P N E) (Battery Backup) Nominal Output Voltage 230V, 400V 3PH Nominal Input Voltage 400V 3PH Input Connections Hard wire 5-wire (3P N E) Maximum Input Current 295.0A Symmetra PX Frame 160kW 400V Modular, high-efficiency 3-phase UPS that is scalable as your data center grows up to 160kW/160kVA. Suitable for small, medium & large data center applications. Includes: Installation guide Multiple cable-entry points Provides flexibility of UPS placement in the room and easy access to install cabling to the terminal blocks. Scalable power capacity Reduces UPS over-sizing costs today by allowing quick power upgrades, within the same footprint, later. Symmetra PX Features & Benefits Agility Scalable power capacity Reduces UPS over-sizing costs today by allowing quick power upgrades, within the same footprint, later. Intelligent Card Slot Customize UPS capabilities with management cards. Programmable frequency Ensures compatibility with different input frequencies. Availability Swappable power modules Allows quick addition of power capacity or replacement of existing power modules. Installed modules are automatically recognized by the system. Power Modules connected in parallel Enhances availability by allowing immediate, seamless recovery from isolated module failures. Redundant Intelligence Modules Provides higher availability to the UPS connected loads by giving redundant communication paths to critical UPS functions. Modular design Provides scalability, N 1 redundancy, fast serviceability, and reduced maintenance requirements via self-diagnosing, swappable, and field-replaceable modules. Network manageable Most models provide remote power management options of the UPS over the network. Many do not have NMC embedded. Battery modules connected in parallel Delivers higher availability through redundant batteries. Configurable for N 1 internal redundancy Provides high availability through redundancy by allowing configuration with one more Power Module than is necessary to support the connected load. Automatic internal bypass Supplies utility power to the connected loads in the event of a UPS power overload or fault. User-replaceable batteries Increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR) User-replaceable power modules Enables simple upgrades and replacements of the Power Modules. Published on lastbestprice.com Manageability Audible alarms Provides notification of changing utility power and UPS power conditions Integrates with StruxureWare Data Center Expert An IT-ready, scalable access monitoring system that collects, organizes, and distributes critical alerts, surveillance video and key information, providing a unified view of complex physical infrastructure environments from anywhere on the network LED status indicators Quickly understand unit and power status with visual indicators. Sustainability EU CoC for UPS Ensures that UPSs sold in the EU are highly efficient Total cost of Ownership Generator compatible Ensures clean, uninterrupted power to protected equipment when generator power is used. Input power factor correction Minimizes installation costs by enabling the use of smaller generators and cabling. 5×8 Start-up service included Required for full coverage of factory warranty Fully-rated power kVA equals kW Reduces cost by eliminating the need for an oversized UPS for Power Factor Corrected (PFC) loads. Detailed Tech Specification Published on lastbestprice.com Output Max Configurable Power (Watts) 160.0kWatts / 160.0kVA Output Voltage Note Configurable for 380 : 400 or 415 V 3 Phase nominal output voltage Input Maximum Short Circuit Withstand (Icw) 30000.0kAmps Communications & Management Control panel Multifunction LCD status and control console Audible Alarm Alarm when on battery : distinctive low battery alarm : configurable delays Emergency Power Off (EPO) Yes Available SmartSlot™ Interface Quantity 2 Physical Maximum Height 1991MM, 199.1CM Maximum Width 600MM, 60.0CM Maximum Depth 1070MM, 107.0CM Net Weight 325.45KG Shipping weight 358.0KG Shipping Height 2140MM, 214.0CM Shipping Width 848MM, 84.8CM Shipping Depth 1210MM, 121.0CM Published on lastbestprice.com Environmental Operating Temperature 0 – 40 °C Operating Relative Humidity 0 – 95 % Operating Elevation 0 – 1015.9meters Storage Temperature -15 – 40 °C Storage Relative Humidity 0 – 95 % Storage Elevation 0 – 4572meters Protection Class NEMA 1 Conformance Approvals EN 50091-1, EN/IEC 62040-1-1, EN/IEC 62040-2, VFI-SS-111 Standard warranty 1 year repair or replace Sustainable Offer Status RoHS Compliant General Bypass Connection 5 wire (3P N E) Bypass Protection Device 250.0 Max Bypass Input Current 250.0A
