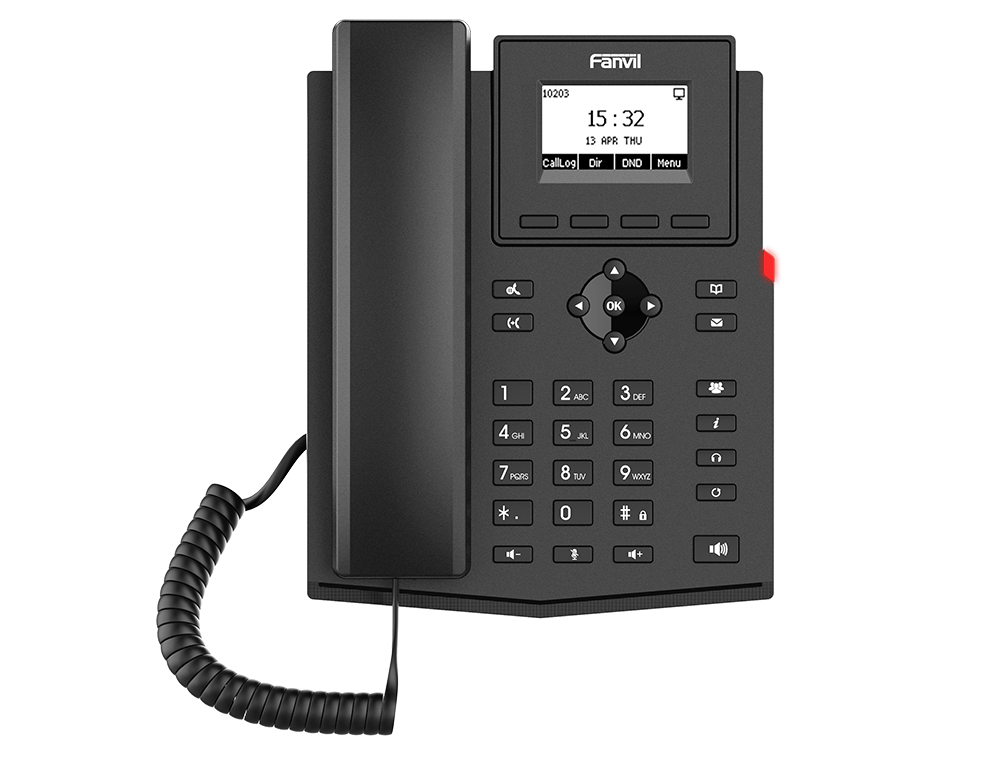

Fanvil X301P Entry Level IP Phone

Fanvil X301P Entry Level IP Phone Fanvil X301P is an entry-level IP phone designed for small to medium-sized businesses seeking reliable and cost-effective VoIP communication solutions. It offers a range of features that enhance user experience and streamline communication. Display & Interface Screen: 2.3-inch dot-matrix display with 132×64 pixel resolution Keys: 33 keys including: 4 soft keys 4 navigation keys (up, down, left, right) 1 OK key 12 standard numeric keys 3 volume control keys (up, down, mute) 9 function keys (Hold, Transfer, Voicemail, Conference, Phonebook, MWI, Headset, Redial, Hands-free) Audio Features HD Voice: Supports wideband codecs G.722 and Opus for superior audio quality Narrowband Codecs: G.711a/u, G.723.1, G.726, G.729A/B, iLBC Audio Enhancements: Full-duplex speakerphone, Acoustic Echo Canceller (AEC), Noise Reduction (NR), Voice Activity Detection (VAD), Comfort Noise Generation (CNG), Automatic Gain Control (AGC), Packet Loss Concealment (PLC), Dynamic Adaptive Jitter Buffer Call Management SIP Accounts: Supports 2 SIP lines Conference Calls: 6-way local conferencing Call Features: Call hold, transfer (attended/unattended), forwarding (always/busy/no answer), waiting, redial, mute/unmute, DND, auto-answer, hotline, hot desking, intercom, caller ID display, anonymous call, speed dial, call parking/pick-up (depending on server) Phonebook & Logs Local Phonebook: Up to 1000 entries Remote Phonebook: XML/LDAP support, up to 1000 entries Call Logs: Stores up to 600 entries (incoming, outgoing, missed) Blacklist/Whitelist: Configurable call filters Headset Support EHS Support: Compatible with EHS wireless headsets via adapters (e.g., Plantronics APD-80, Jabra EHS20) Ports: RJ9 headset jack, optional 3.5mm headset jack with adapter Network & Connectivity Ethernet Ports: Dual 10/100 Mbps ports with integrated PoE (Power over Ethernet) IP Configuration: Static IP, DHCP, PPPoE Protocols: SIP v2 (RFC 3261), RTP/RTCP/SRTP, STUN, DHCP, IPv4/IPv6, LLDP, PPPoE, 802.1x, L2TP, OpenVPN, SNTP, FTP/TFTP, HTTP/HTTPS, TR-069 Security: TLS, SRTP, AES128 & AES256 encryption QoS: Supports 802.1p/Q tagging (VLAN), LLDP, QoS Management & Provisioning Auto-Provisioning: Supports FTP/TFTP/HTTP/HTTPS, DHCP Option 66, SIP PnP, TR-069 Web Management: Accessible via web portal for configuration and maintenance Firmware Upgrades: Remote upgrade capabilities Configuration: Export/import configurations, phonebook import/export Physical Specifications Dimensions: Desktop Stand (45°): 169×201.1×177.4 mm Desktop Stand (50°): 169×191.9×185.8 mm Wall Mountable: 169×120.1×213.7 mm Weight: Approximately 1.5 lbs (0.68 kg) Color: Black Power Supply: PoE or optional external power adapter (5V DC, 0.6A) Power Consumption: Using Adapter: 0.8~1.29W Using PoE: 1.25~1.86W Operating Conditions: Temperature: 0~45°C Humidity: 10~95% Package Contents Fanvil X301P IP Phone Handset with RJ9 Cord Desktop Stand 1.5M CAT.5E Ethernet Cable Quick Installation Guide
