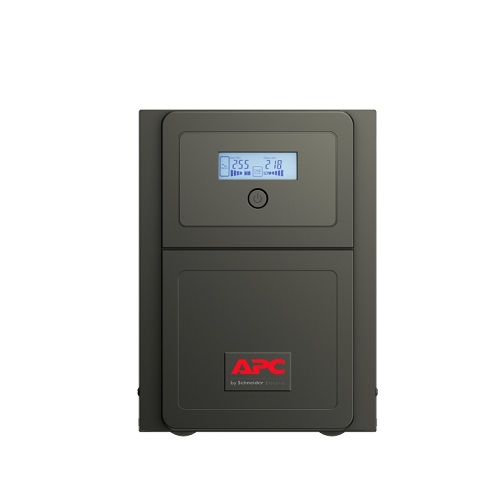

APC Easy UPS Line-interactive SMV 1000VA 230V Schuko Outlet – SMV1000I-GR Overview SMV1000I-GR Features Run time for load 3m 23s Max. Capacity Used 100% Output power capacity 700 Watts / 1.0kVA Output Connections (4) Schuko CEE 7 (Battery Backup) Nominal Output Voltage 230V Nominal Input Voltage 230V Input Connections IEC 60320 C14 APC Easy UPS Line-interactive SMV 1000VA 230V, Schuko Outlet Easy UPS provides power protection for unstable power conditions, ensuring consistent and reliable connectivity at the most critical moments. Includes: Documentation CD, USB cable, User manual Automatic Voltage Regulation (AVR) Automatically steps up low voltage and steps down high voltage to levels that are suitable for your equipment. Cold-start capable Provides temporary battery power when the utility power is out. LCD graphics display Text and mimic diagrams that display modes of operation, system parameters and alarms. Pure sine wave output on battery Simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics. Easy UPS Features & Benefits Safety Safety-agency approved Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment. Availability Advanced Safety Features Safeguard your Home UPS from overloads, excessive mains voltages, short circuits, installation mishaps and battery damage due to low voltage situations. Intelligent battery management Maximizes battery performance, life, and reliability through intelligent, precision charging. Battery failure notification Provides early-warning fault analysis on batteries enabling timely preventive maintenance Features Boost Automatic Voltage Regulation (AVR) Preserves battery life and maximizes runtime by correcting low voltages without discharging the battery. Transformer-block spaced outlets Protect equipment with input transformer blocks without blocking access to other receptacles. Sleek design Slim, modern design can be upright, flat, or wall-mounted to comfortably fit any electronics set-up and complement home décor. Cold-start capable Provides temporary battery power when the utility power is out. Manageability Audible alarms Provides notification of changing utility power and UPS power conditions LED Indicators Provide easy-to-read status of the unit and utility power conditions. Protection Battery backup and surge protection Outlets provide abundant runtime for network gateway equipment and other critical low-power devices, allowing for hours of internet access during a power outage. Battery and surge protected outlets Back up and protect your hardware and data during power outages, surges and spikes . Detailed Tech Specification Output Max Configurable Power (Watts) 700 Watts / 1.0kVA Output Frequency (sync to mains) 50/60 Hz /- 1 Hz Unsynchronised Load Crest Factor 3 : 1 Topology Line interactive Waveform type Sine wave Transfer Time 2-6 ms typical : 12 ms maximum Input Input frequency 45 – 65 Hz Auto-sensing Input voltage range for main operations 165 – 290V Number of Power Cords 1 Other Input Voltages 220 V, 240 V Batteries & Runtime Battery type Lead-acid battery Typical recharge time 4hour(s) Nominal Battery Voltage 24 V Expected Battery Life (years) 3 – 5 Battery Charge Power (Watts) 37 Watts Battery Volt-Amp-Hour Capacity 168 Runtime View Runtime Graph Efficiency View Efficiency Graph Communications & Management Interface Port(s) USB Audible Alarm Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm Surge Protection and Filtering Surge energy rating 190Joules Physical Maximum Height 220MM, 22.0CM Maximum Width 160MM, 16.0CM Maximum Depth 410MM, 41.0CM Net Weight 13.6KG Shipping weight 16.6KG Shipping Height 339MM, 33.9CM Shipping Width 272MM, 27.2CM Shipping Depth 508MM, 50.8CM Color Black Environmental Operating Temperature 0 – 40 °C Operating Relative Humidity 0 – 95 (Non-condensing) % Operating Elevation 0 – 3000meters Storage Temperature -10 – 40 °C Storage Relative Humidity 0 – 95 (Non-condensing) % Storage Elevation 0 – 15000meters Audible noise at 1 meter from surface of unit 45.0dBA Protection Class IP20 Conformance Approvals CE, EN/IEC 62040-1, EN/IEC 62040-2 Standard warranty 2 years repair or replace
