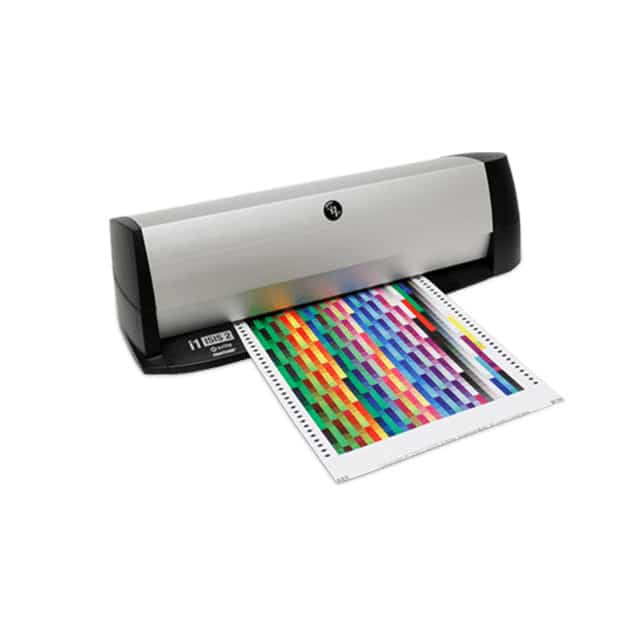

The i1iSis 2 A4/Letter automated chart reader is the ideal instrument to speed up and automate printer profile creation, now supporting M1 measurement standards.SpecificationsShort Term Repeatability – White0.1 DE*94 (D50, 2°)Inter-Instrument AgreementAverage 0.4 DE*94 (deviation from X-Rite manufacturing standard at a temperature of 23°C on 12 BCRA tiles (D50, 2°))Measurement ConditionsM0, M1 & M2Minimal Media ThicknessTypical 0.16mm, Range: 0.08 to 0.45mmPhotometric Range10 nm; Sampling interval 3.5 nm (100 bands)Spectral Analyzer i1® technology (holographic diffraction grating with diode array)Spectral Range380 – 730 nmSpectral Reporting10 nmApertureEffective measurement aperture during scanning is depending on the patch sizeUnit ColorSilver/BlackDimensions (length, width, height)Width 42 cm, depth 16 cm, height 12 cm (16.5 x 6.3 x 4.7 inches)Weight3.2 kg (112.9 oz)Communication InterfaceUSBExperience LevelIntermediate to AdvancedSoftware Development KitAvailable for OEM customersSheet SizeA4 Width: 6 to 23 cm (2.4 to 9 in.) Length: 17 cm to 66 cm (6.7 to 26 in.)CalibrationAutomatic on Internal Calibration ReferenceOptical Brigtener Compensation (OBC)Optical Brightener Compensation (OBC) with i1Profiler softwareWarrantyTwelve (12) months from the date of sale, unless different local regulations apply. Product registration is required to receive X-Rite technical support during the warranty period. Registration can occur directly through the software, on our website, or via phone. Users are encouraged to register their product within the first 30 days of use.What’s Included?i1iSis 2 spectrophotometer; main power cable, USB cableConnectivityPowered USB port Product referenceBrand: X-Rite ®Ref #: EOIS2
