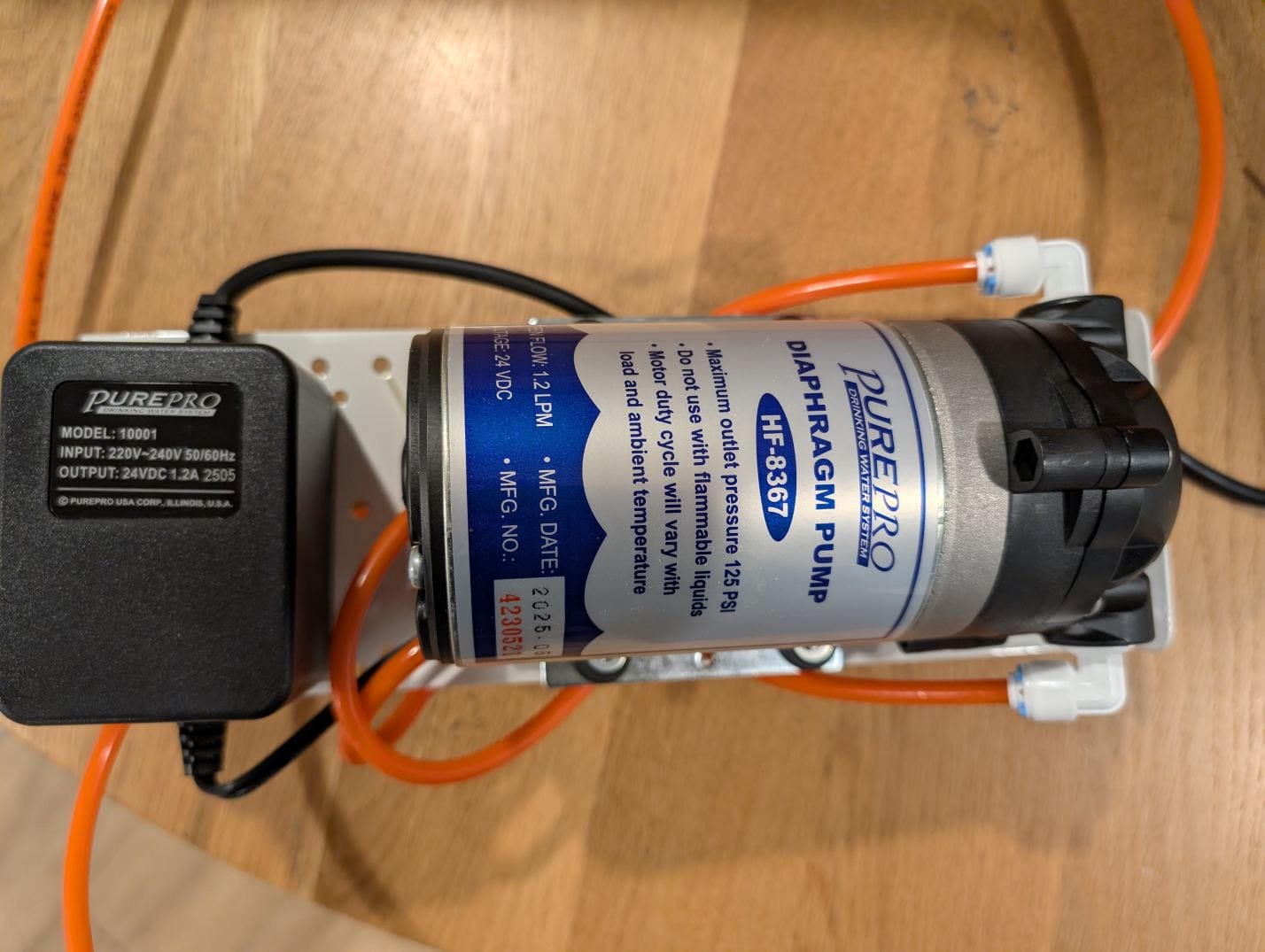

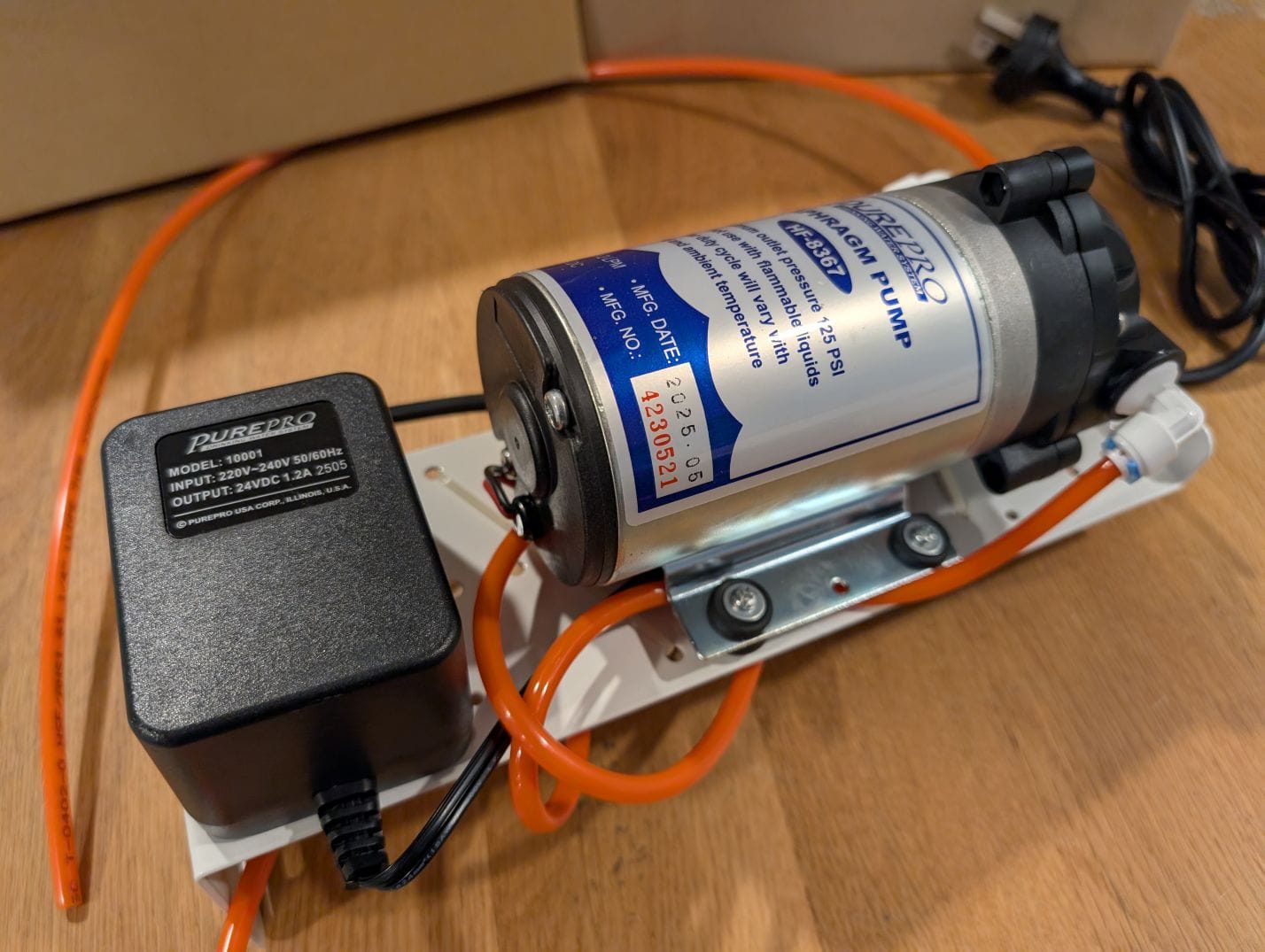

Booster Pump For Reverse Osmosis System on Bracket

Description  Description-Booster Pump RO Systems The purpose of the reverse osmosis booster pump is to increase water pressure going into the RO unit. Booster pumps provide reliable inlet pressure for efficient membrane utilisation. These pumps are capable of continuous duty and are effective for recirculation based applications as well. They are ideally suited to work with hydro-pneumatic storage systems but are compatible with most hydraulic shut-off valves also. These pumps are commonly used with one or more flow control components including: pressure switches, tank level controllers, or electronic shut-off valves. A typical “RO Kit” includes a booster pump, pressure switch, and transformer, which is included. Reverse osmosis is a pressure-driven process. Small residential RO units will theoretically operate on very low pressure–down to 35 psi, according to some membrane makers–but the reality is, you won’t get a lot of water and the product water quality will be compromised if the unit runs below 45 psi. Low inlet pressure makes the unit produce more reject water, produce less drinking water, fill the storage tank more slowly, and produce lower quality water. RO units run well on typical city water pressure of 60 psi, but they run even better with a small pump to boost the pressure to 80 psi or higher. Booster Pump RO Systems Features 3 Chamber Diaphragm Pump Self Priming Capable of Being Run Dry 24 VAC Permanent Magnet Totally Enclosed Non-Ventilated Motor Materials of Construction: Nylon Housing EPDM Valves Santoprene Diaphragm Stainless Steel Fasteners Certified to NSF Standard 58 Booster Pump RO Features Pre-Filter Water Treatment RO Boost Carbonation Systems Misting Systems Alternative Energy/Solar Medical Labwater Laser Cooling Systems Fuel Cells Includes complete assembly including pressure switches Model: HF- 8367 Voltage: DC 24 V Pressure: 70~100PSI Inlet”0″: By pass 80PSI Prime: self priming up to 3 meters. Flow:100GPD (1.2 LPM) PORTS: 1/4″ push in fittings N.W.: 1.8KG  More Specifications : BOOSTER PUMP FOR RO SYSTEM
