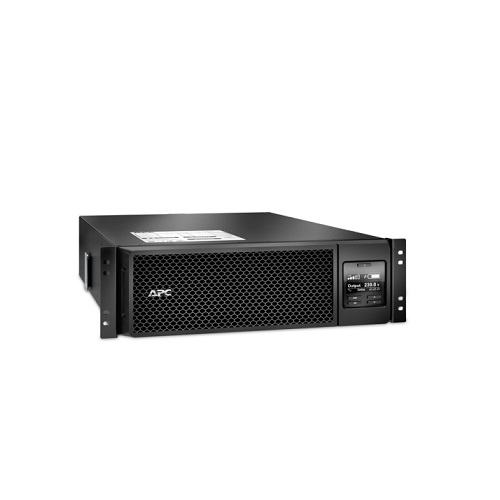

SRT5KRMXLIM Features Run time for load 3m 59s Max. Capacity Used 100% Output power capacity 4.5kWatts / 5.0kVA Output Connections (2) IEC Jumpers (Battery Backup) (6) IEC 60320 C13 (Battery Backup) (4) IEC 60320 C19 (Battery Backup) Nominal Output Voltage 230V Nominal Input Voltage 230V Input Connections Hard wire 3-wire (1P N E) APC Smart-UPS SRT 5000VA RM 230V Marine High availability, ruggedized power protection for shipboard and other transportation applications. Includes: Documentation CD, Installation guide, Rack mounting brackets, Rack mounting hardware, Rack mounting support rails, Temperature probe, Warranty card Battery failure notification Provides early-warning fault analysis on batteries enabling timely preventive maintenance Green mode Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection. LCD graphics display Text and mimic diagrams that display modes of operation, system parameters and alarms. Marine Features & Benefits Availability Pure sine wave output on battery Simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics. Temperature-compensated battery charging Prolongs battery life by regulating the charge voltage according to battery temperature. Automatic restart of loads after UPS shutdown Automatically starts up the connected equipment upon the return of utility power. Automatic self-test Periodic battery self-test ensures early detection of a battery that needs to be replaced. Power conditioning Protects connected loads from surges, spikes, lightning, and other power disturbances. Serviceability Easy to install Innovative design allows for fast, easy installation by almost anybody. Hot-swappable batteries Ensures clean, uninterrupted power to protected equipment while batteries are being replaced Technical support Our experienced technical support engineers are available to answer your questions, giving you peace of mind knowing the help you need is there when you need it. User-replaceable batteries Increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR) Manageability Intelligent Card Slot Customize UPS capabilities with management cards. LED Indicators Provide easy-to-read status of the unit and utility power conditions. Intelligent battery management Maximizes battery performance, life, and reliability through intelligent, precision charging. Serial connectivity Provides management of the UPS via a serial port. Detailed Tech Specification Output Max Configurable Power (Watts) 4.5kWatts / 5.0kVA Output Voltage Distortion Less than 3 % Output Frequency (sync to mains) 50/60 Hz /- 3 Hz Sync to mains Other Output Voltages 220 V, 240 V Load Crest Factor 3 : 1 Topology Double conversion online Waveform type Sine wave Bypass Internal bypass (automatic and manual) Input Input frequency 45 – 65 Hz Auto-sensing Other Input Voltages 220 V, 240 V Batteries & Runtime Battery type Lead-acid battery Typical recharge time 1hour(s) Nominal Battery Voltage 192 V Replacement Battery APCRBC140 Expected Battery Life (years) 3 – 5 RBC Quantity 1 Battery Charge Power (Watts) 837 Watts Extendable Run Time 1 Runtime View Runtime Graph Efficiency View Efficiency Graph Communications & Management Interface Port(s) Contact Closure, RJ-45 10/100 Base-T, RJ-45 Serial, Smart-Slot, USB Pre-Installed SmartSlot™ Cards AP9613 Control panel Multifunction LCD status and control console Audible Alarm Audible and visible alarms prioritized by severity Emergency Power Off (EPO) Yes Surge Protection and Filtering Surge energy rating 480Joules Physical Maximum Height 130MM, 13.0CM Maximum Width 432MM, 43.2CM Maximum Depth 719MM, 71.94CM Net Weight 54.43KG Shipping weight 66.86KG Shipping Height 330MM, 33.0CM Shipping Width 610MM, 61.0CM Shipping Depth 960MM, 96.0CM Color Black Units per Pallet 6.0 Environmental Operating Temperature 0 – 40 °C Operating Relative Humidity 0 – 95 (Non-condensing) % Operating Elevation 0 – 3048meters Storage Temperature -15 – 45 °C Storage Relative Humidity 0 – 95 (Non-condensing) % Storage Elevation 0 – 15240meters Audible noise at 1 meter from surface of unit 55.0dBA Online thermal dissipation 931.0BTU/hr Protection Class IP20 Conformance Approvals CE, CE Mark, DNV, EAC, RCM, VDE Standard warranty 3 years repair or replace (excluding battery) and 2 years for battery Sustainable Offer Status RoHS Compliant
