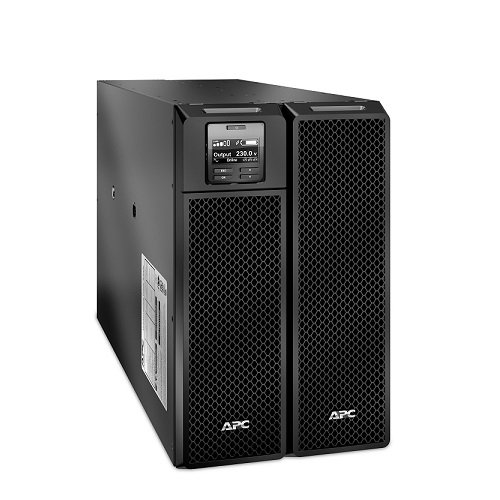

APC Smart-UPS SRT 10000VA RM 230V, Custom PDU – SRT10RMXLIX806 Main Input Voltage : 230 V, 400 V 3 phases Main Output Voltage : 230 V Wave type : Sine wave UPS type : Double conversion online Battery type : Lead-acid battery Warranty : 3-Year PN : SRT10RMXLIX806 Overview This product is part of the Smart-UPS On-Line range that provides high density, true double-conversion on-line power protection. This 10000VA/10000W On-line pure sine wave UPS provides scalable runtime while minimizing maintenance. The 6U rack/tower convertible SRT UPS has an Embedded Network Management Card for network-based UPS monitoring and management. The UPS has an additional SmartSlot for connectivity and PowerChute Network Shutdown support for graceful unattended shutdown. It comes with hard wire 3-wire input and hard wire 3-wire/5-wire output connections. The UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. Its dimensions are 715mm (depth) x 263mm (height) x 432mm (width) and weighs 111.82kg. Ideal for servers, voice/data networks, medical labs, and light industrial applications. It conforms to CE, CE Mark, EAC, EN/IEC 62040-1, EN/IEC 62040-2, IRAM, RCM, and VDE. Designed for IT professionals or network administrators providing wide input voltage window, tight output voltage regulation, frequency regulation, internal bypass, and input power factor correction. Published on lastbestprice.com Detailed Tech Specification Main Run time for loadMin-max: 1000-10000 W 3min 45s Max. Capacity Used 100 % Main Input Voltage 230 V 400 V 3 phases Other Input Voltage 220 V 240 V 380 V 415 V Main Output Voltage 230 V Other Output Voltage 220 V 240 V Rated power in W 10000 W Rated power in VA 10000 VA output connection type 4 IEC 60309 32 A output connector type Hard wire 3-wire (H N E) 1 Number of rack unit 6U Battery type Lead-acid battery provided equipment CD with software Documentation CD Installation guide Rack mounting hardware Rack mounting brackets Rack mounting support rails Temperature probe USB cable Warranty card Web/SNMP management card General product web sub-family High density Number of power module free slots 0 Number of power module filled slots 0 Redundant No Physical colour Black Height 26.3 cm Width 43.2 cm Depth 71.5 cm Net weight 111.82 kg Mounting location Front Mounting preference No preference Mounting mode Rack-mounted Two post mountable 0 USB compatible Yes Input network frequency 40…70 Hz auto-sensing number of input connectors 1 hard wire 3-wire (1P N E) 1 hard wire 5-wire (3P N E) input voltage limits 100…275 V adjustable (half load) 173…476 V adjustable (half load) Output Maximum configurable power in W 10000 W Harmonic distortion Less than 2 % output frequency 50/60 Hz /- 3 Hz sync to mains Crest factor 3 : 1 UPS type Double conversion online Wave type Sine wave Bypass type Internal bypass (automatic and manual) Maximum configurable power in VA 10000 VA Conformance Product certifications CE EAC IRAM RCM VDE Marking CE Mark standards EN/IEC 62040-1:2019/A11:2021 EN/IEC 62040-2:2006/AC:2006 EN/IEC 62040-2:2018 Environmental Ambient air temperature for operation 0…40 °C relative humidity 0…95 % non-condensing Operating altitude 0…10000 ft Ambient air temperature for storage -15…45 °C storage Relative Humidity 0…95 % non-condensing Storage altitude 0.00…15240.00 m Acoustic level 55 dBA Heat dissipation 1947 Btu/h IP degree of protection IP20 Batteries & Runtime Run Time View Runtime Graph Efficiency View Efficiency Graph Number of battery filled slots 0 Battery recharge time 1.5 h Number of battery replacement quantity 2 battery charger power 1195 W rated Battery power in VAH 1805 VAh runtime Battery life 3…5 year(s) Replacement battery APCRBC140 battery option SRT192RMBP2 1 3610 VAh SRT192RMBP2 2 5415 VAh SRT192RMBP2 3 7220 VAh SRT192RMBP2 4 9025 VAh SRT192RMBP2 5 10830 VAh SRT192RMBP2 6 12635 VAh SRT192RMBP2 8 16245 VAh SRT192RMBP2 10 19855 VAh Extended runtime 1 Communications & Management Free slots 1 alarm Audible and visible alarms : prioritized by severity Emergency power off Yes Surge Protection and Filtering Surge energy rate 480 J Packing Units Unit Type of Package 1 PCE Number of Units in Package 1 1 Package 1 Height 46.1 cm Package 1 Width 100 cm Package 1 Length 60 cm Package 1 Weight 130 kg Contractual warranty Warranty 3 years repair or replace (excluding battery) and 2 years for battery
