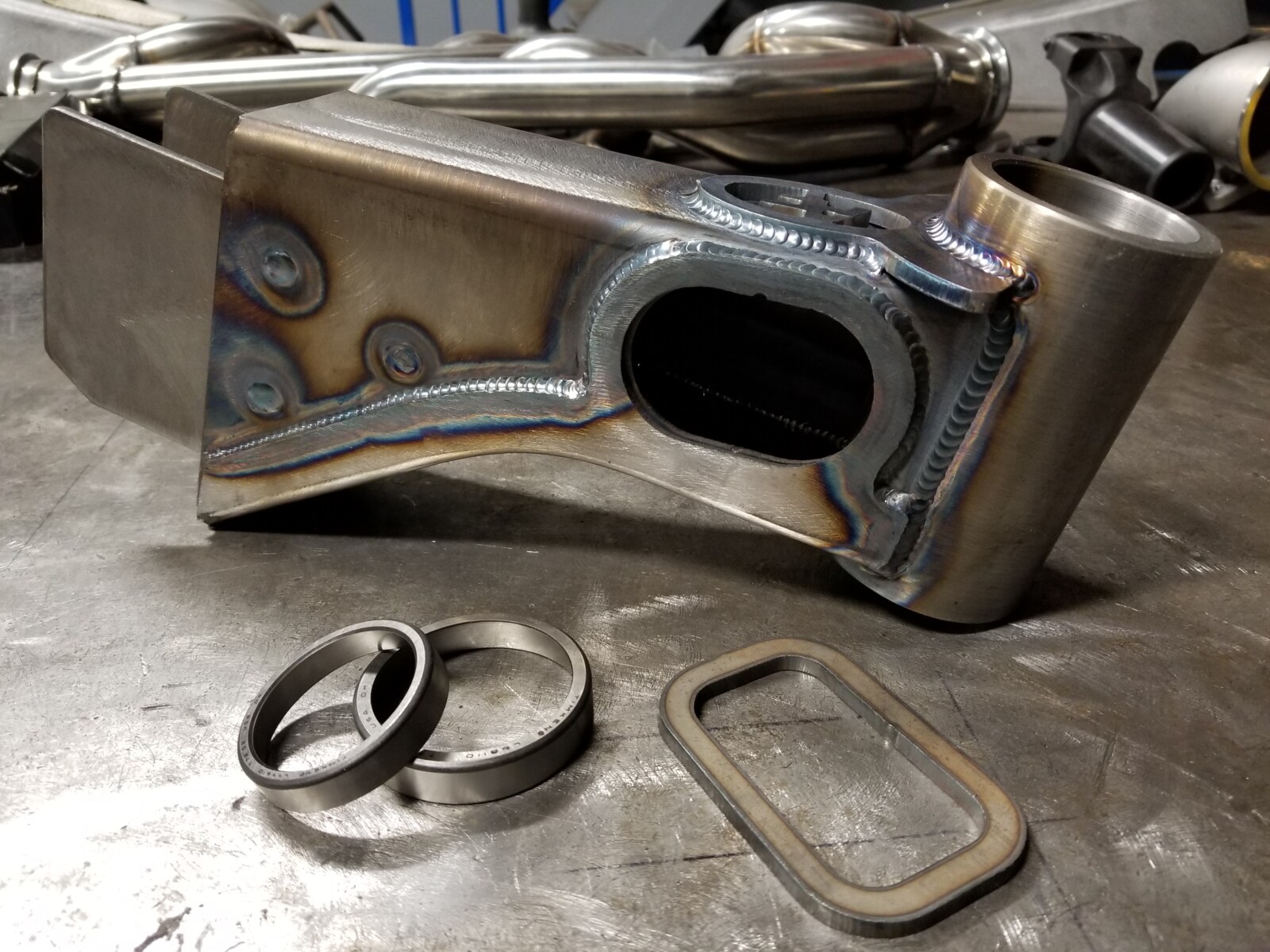

Description Our 30″ wheel weld on neck is designed around American Suspension 30/32 rake trees. Its made from 10ga. 1018 cold rool streel and tig welded inside and out for a superior strength and style. With this neck you will recieve the weld on neck, both top and bottom bearing race cups, and cut template . With the combination of our neck, American Suspension trees and front air ride this setup will produce a nice level bike with 1″ of ground clearance aired down. To achieve 1″ ground clearance rear air ride and modification to rear swingarm is needed. (layframe swingarm) Important: This neck does not come with trees. See our AFK 30 Rake Kit. Neck fitment and welding should be done by a professional/expert in the field. When running a fairing, all aftermarket necks will require a aftermarket fairing mount. See our Adjustable Road Glide Fairing Mount. To achieve 3″ ground clearance rear air ride is required and is not supplied. When purchasing American Suspension Trees the 3″ fork leg end caps are needed to obtain proper fender to tree clearance. 30″ Layframe Neck is same as 32″ Standard Neck 30 Standard w/ RG Bracket 2009 & Up 12-3/4 ” Long X 3-3/4″ Wide X 5-1/2″ Tall (9 lbs and 5 oz) 30 Layframe 15-3/8″ Long X 4″ Wide X 6-1/8″ Tall ( 11lbs and 15.0 oz)
